Galvanized Field Fence
Field fence also known as grassland fence or cattle fence.is a widely used in the Americas in Europe to protect the ecological balance, to prevent landslides, livestock husbandry fence, especially in the rainy mountain outside the net sewing a layer of sunscreen 120 grams of nylon woven cloth blocking silt Outflow so rapid development.
|
Specifications and Hole Sizes |
Gross Weight kg |
Top&Bottom Wire Dia. mm |
Inner Wire
mm |
Material |
|
|
Type |
Specifications (the incremental vertical hole sizes) |
||||
|
7/150/813/50 |
102+114+127+140+152+178 |
19.3 |
2.5 |
2.0 |
Hot dip galvanized wireZinc coating of 40-50g/m2 Zinc coating more than 200g/m2 |
|
8/150/813/50 |
89(75)+89+102+114+127+140+152 |
20.8 |
2.5 |
2.0 |
|
|
8/150/902/50 |
89+102+114+127+140+152+178 |
21.6 |
2.5 |
2.0 |
|
|
8/150/1016/50 |
102+114+127+140+152+178+203 |
22.6 |
2.5 |
2.0 |
|
|
8/150/1143/50 |
114+127+140+152+178+203+229 |
23.6 |
2.5 |
2.0 |
|
|
9/150/991/50 |
89(75)+89+102+114+127+140+152+178 |
23.9 |
2.5 |
2.0 |
|
|
9/150/1245/50 |
102+114+127+140+152+178+203+229 |
26.0 |
2.5 |
2.0 |
|
|
10/150/1194/50 |
89(75)+89+102+114+127+140+152+178+203 |
27.3 |
2.5 |
2.0 |
|
|
10/150/1334/50 |
89+102+114+127+140+152+178+203+229 |
28.4 |
2.5 |
2.0 |
|
|
11/150/1442/50 |
89(75)+89+102+114+127+140+152+178+203+229 |
30.8 |
2.5 |
2.0 |
|
Hinge jointed field fence:
The hinge joint knots is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available.
Fixed knot field fence or we call Deer fence:
Fixed knot field fence considered top-of-the-line as the fixed knot utilizes a separate piece of wire tightly wrapped around the line wire and stay wire, increasing the fence’s vertical strength allowing for increased post spacing and making it very resistant to animal damage.

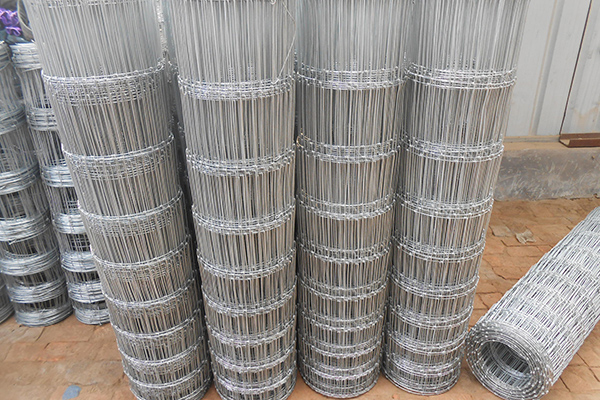

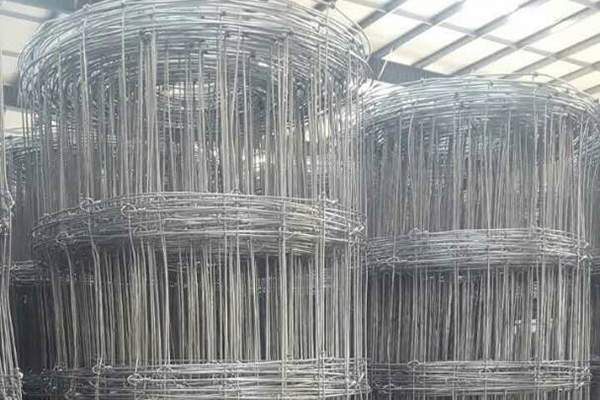

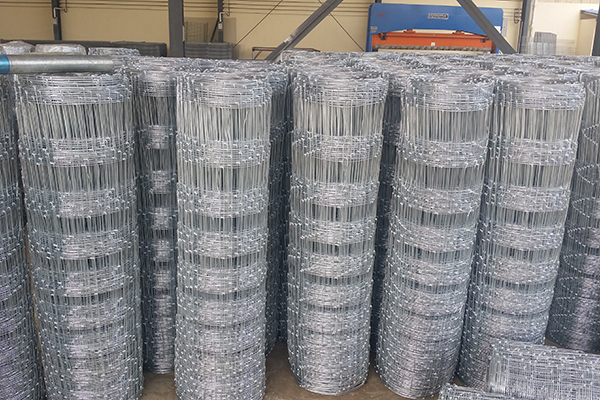

Details of the figure
